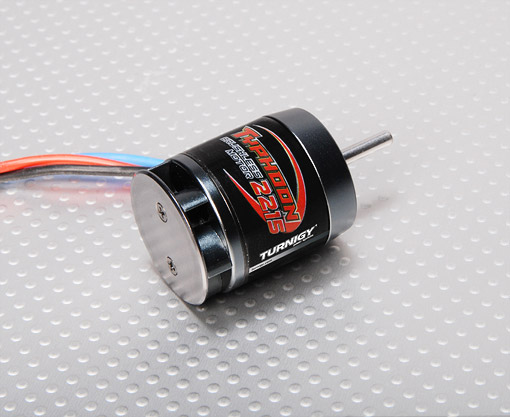

Turnigy Typhoon 450H 2215H Heli Motor 3550kv (450 class)
Specifications:
Dimension: 35mm x 28mm, 51mm(with shaft)Weight: 63g (kv3550) (not including connectors)
Voltage: 2-4S
Max current: 20~28A
Diameter of shaft:3.17mm
Length of front shaft:16mm
ESC: 40A
Turnigy Typhoon 2215H for 450 class Helicopters.nigy Typhoon 450H 2215H Heli Motor 3550kv (450 class)

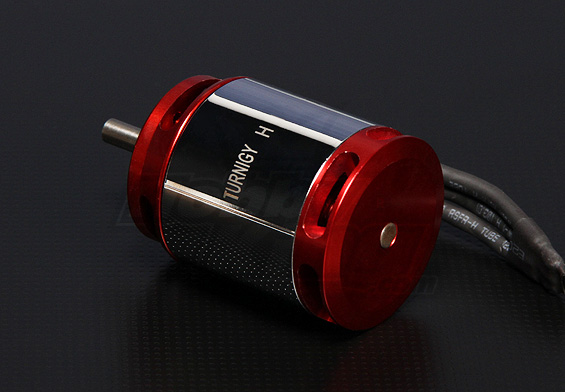

Turnigy 450 H2218 Brushless outrunner 3200KV
This motor is specifically designed for the 450 helicopter range and a perfect fit for any of our HK450 helicopters.
Spec.
Model: 2218
Turns: 4
Cells: 2~4S
Kv: 3200rpm/V
No load Current: 3.6A/10V
Max power: 500W
Weight: 67g
Shaft diameter: 3.17mm
Dimensions: 27.2 x 36.5mm
IN STOCK $12.50
ADD TO CART

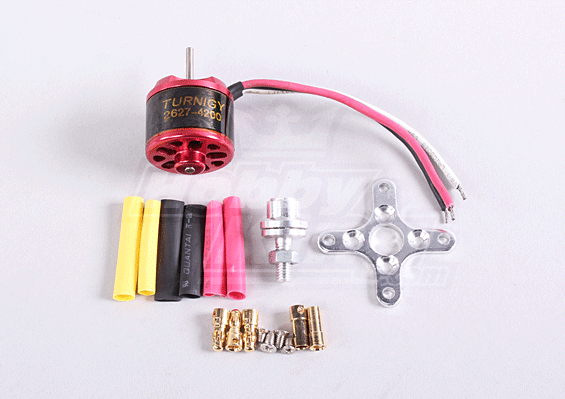

Turnigy 2627 Brushless 300-Size Heli Motor 4200kv
Dimension: 26mm x 28mm, 41mm(with shaft)
Weight: 39g (kv4200) (not including connectors)
Diameter of shaft:F2.3mm
Length of front shaft:F12mm
Lamination thickness: .2mm
Magnet type: 45SH
Max performance;
Voltage: 2-3S
Max current: 22A/20S
Prop: APC4.1x4.5

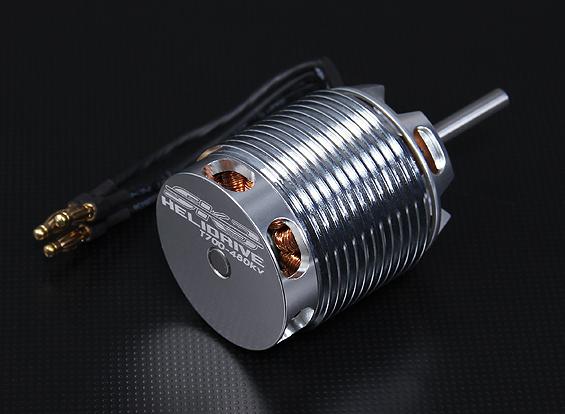

Turnigy HeliDrive SK3 Competition Series - 4962-480kv (700/.90 size heli)
.jpg) .jpg) | Turnigy SK3 Competition Series motors are the newest addition to our SK3 motor line-up offering the absolute best quality, performance and efficiency for your model on a competition level. Each and every SK3 Competition Series motor is thoroughly inspected and tested to ensure the high efficiency and top performance required for meeting the demands of competition flying.Turnigy HeliDrive SK3 Competition Series motors are top quality outrunners designed specifically for use in todays high performance helicopter models.We instructed the engineers to source the best quality magnets, bearings and materials available to them and develop a motor that would not only rival, but surpass the quality of many leading motor manufacturers on the market today.The result is an efficient, high caliber motor using quality double shielded bearings, sintered Neodymium magnets and a string wound stator ensuring an accurate and consistent winding each and every time.The Turnigy SK3 motors are suited to modelers who are seeking a top quality brushless motor without compromise.*Perfect for Trex 700/Raptor 90/Aurora 90/Gaui X7/Logo 700 or any other 700/.90 size helicopter.
IN STOCK $70.48
ADD TO CART
|
 .jpg)

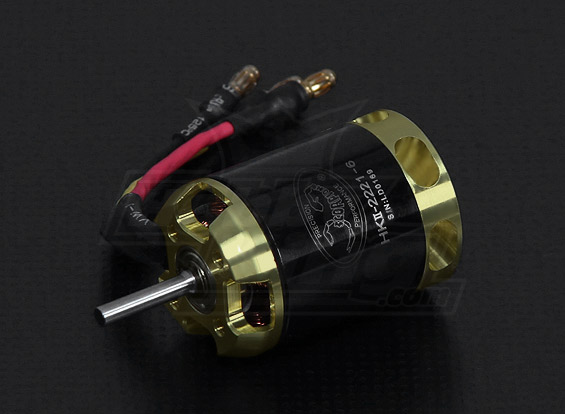

| Scorpion HK-2221-6 Brushless Outrunner |
Scorpion HK Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.
IN STOCK $79.99
ADD TO CART |
Scorpion HK-2216-3350kv Brushless Outrunner
Scorpion HK Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F).The magnets used in Scorpion Motors are custom manufactured to be able to withstand temperatures of up to 200 degrees C (392 F).
All Scorpion HK Series 22mm motors come with 3.5mm male Bullet style connectors already attached, and include a hardware package that contains 3 matching female Bullet connectors for your speed controller, heatshrink to cover the bullet connectors and mounting screws. Since the HK series motors are primarily designed for Helicopter and Ducted Fan use, they do not include a prop adapter. If you intend on running a prop on this motor, you will need to purchase a prop adapter for a 3.17mm shaft (1/8 inch).
IN STOCK $64.99
ADD TO CART
Turnigy L2815H-2700 4s Brushless 450 Heli Motor (400w)
Spec. 4S
RPM/V: 2700 KV
Voltage: 14.8v(4s)
No load Current: 1.5A
Max Current: 35A
Max Power: 400W
Shaft Size : 3.175mm
Shaft Length: 18mm
Dimension: 28mm x 36mm
Thrust: 690g
Weight: 66g
IN STOCK $11.19
ADD TO CART |

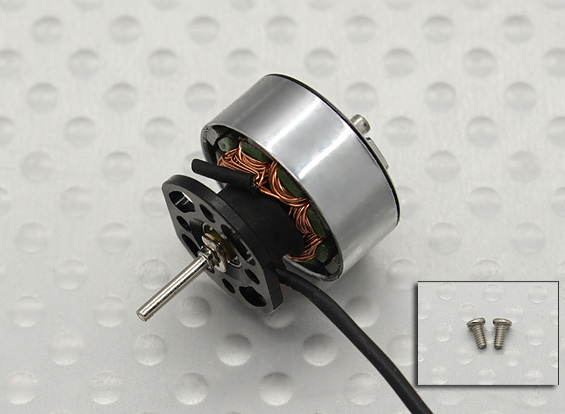

11500KV Brushless Main Motor for M5 Helicopter
Specs:
RPM/V: 11500KV
Diameter: 14mm
Motor Length: 10mm
Overall Length: 21mm
Shaft: 1mm
Weight: 4g
IN STOCK $15.50
ADD TO CART

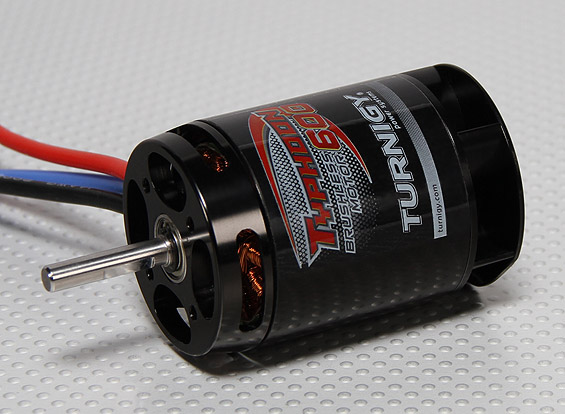

Turnigy Typhoon 600H Heli Motor 1100kv (600 class)
The Turnigy Typhoon is a very serious upgrade for any 600 size heli. Big, tight copper wire turns with thin, tightly packed laminations and a small stator/magnet air gap make this motor very efficient and powerful.
Users will notice the instant power increase and higher idle speed when using this motor & we suggest you adjust your throttle accordingly.
Specifications:
Dimension: 42mm x 62mm, 85mm(with shaft)Weight: 269g
Kv: 1100rpm/V
Voltage: 3~6S
Max Current: 60A
Diameter of shaft: 5mmLength of front shaft: 23mm
ESC: 80A
The Typhoon 600 Size helicopter motor is a serious upgrade for any 600 size heli.
IN STOCK $40.92
ADD TO CART
Turnigy Typhoon 500H Heli Motor 1800kv (500 Class)
The Turnigy Typhoon is a very serious upgrade for any 500 size heli. Tight copper wire turns with high pressure pressed laminations make this motor very efficient and powerful.
Users will notice the instant power increase and higher idle speed when using this motor & we suggest you adjust your throttle accordingly.
Specifications:
Dimension: 37mm x 50mm, 71mm(with shaft)Weight: 170g
Kv: 1800rpm/V
Voltage: 3-6S
Max current: 55A
Diameter of shaft: 5mmLength of front shaft: 20mm
ESC: 65A
A serious upgrade for any 500 size heli.
IN STOCK $31.60
ADD TO CART

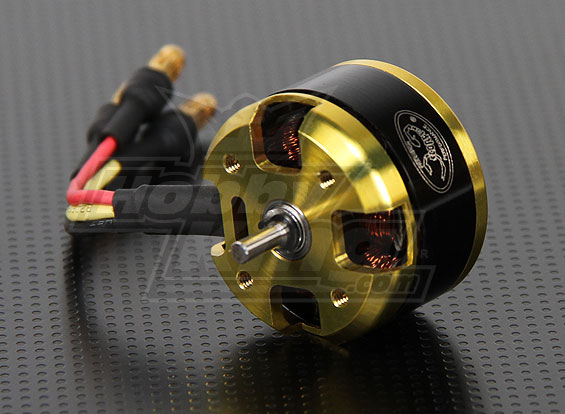

Scorpion HK-2206-3900kv Brushless Outrunner
Scorpion HK Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.
IN STOCK $49.99
ADD TO CART

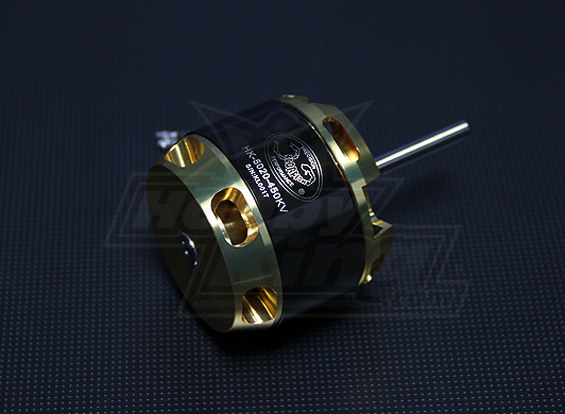

Scorpion HK-5020-450 Brushless Outrunner Motor
The Scorpion HK-5020-450 motor is designed for 700 class Electric Helicopters, and for people that want to convert their .90 size glow helicopter to electric power. This motor has a maximum continuous power rating of 3770 watts at 85 amps, and a peak power rating of 5320 watts at 120 amps! The larger diameter 50mm stator allows these motors to produce insane amounts of torque.
Scorpion HK Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.
IN STOCK $279.99
ADD TO CART

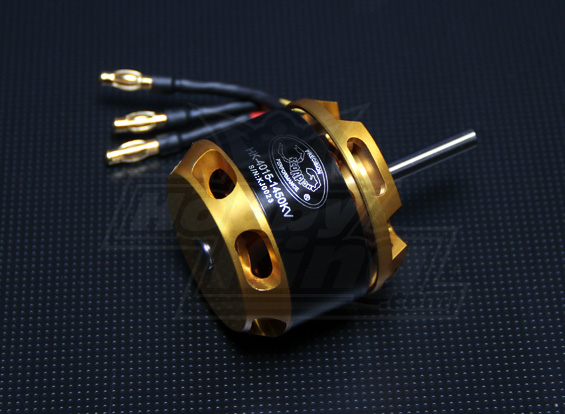

Scorpion HK-4015-1450KV Brushless Outrunner Motor
The Scorpion HK-4015-1450KV motors have been developed for the 500 class electric helicopters with 500mm blade for 6s Lipo setup. These motors are designed to provide all the power that you can use, while still maintaining excellent efficiency and cool running characteristics.
Scorpion HK Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.
IN STOCK $92.38
ADD TO CART

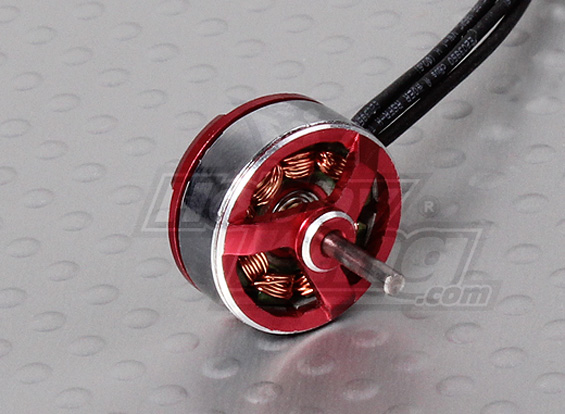

ADH30S Micro brushless outrunner 7500kv
Suitable for LAMA2 and similar micro helicopters.
Weight: 2.6g
Kv: 6100rpm/v
Size: 17 x 13mm
Max current: 2A
Current: 4.2V/0.4A (No load)
Shaft: 1mm
Shaft length: 5mm
Prop: 2510
Test data;
GWS 2510
Voltage: 4.2V
Current: 2.40A
Watts: 10.08W
Thrust: 32g
|
