The FMA Direct Co-Pilot™(PN CPD4) Flight Stabilization Unit (FSU) is a patented system that senses the difference in infrared signature between the earth and the carbon dioxide in the atmosphere to provide 100% real time, day or night stabilization about two axes on any model. Its action may be visualized as the equivalent of a string tautly stretched between the center of the earth and deep space on which the model is constantly held so that it can not turn downward unless commanded. This new technology will revolutionize the training of R/C pilots for airplanes, helicopters, and gliders. Every club and every RC hobby dealer will want one to increase the number of successful pilots and reduce the number who crash their ARF/RTF trainer, never to return to the hobby. The sticks can be used normally to command the model through any maneuver it is capable of, yet, the moment the sticks are centered, the model immediately rights itself, even from inverted flight. Buddy boxes will no longer be needed as Co-Pilot has proven to be the most effective way possible to train new flyers and to assist all flyers. The instructor no longer needs a transmitter.
If you use the CPD4 Co Pilot with a Futaba PCM receiver, FMA Direct recommends the 605SB servo buffer (installation instructions included with the CPD4 manual)
4 Sensor, 2 Axis Infrared Thermo-technology Flight Stabilization System maintains level flight for aircraft and heli. Stabilizes pitch and roll for almost any R/C aircraft. The CPD4 does not handle CCPM helicopters or aircraft configurations that include differential ailerons or flapperons.
Weight: 1 oz.
Ratings: Accuracy: 2 degrees
Applications: Stabilize any R/C fixed wing airplane, helicopter, special configuration
IN STOCK $54.95
CLICK HERE
|
HobbyKing Multi-Rotor Control Board V2.1 (Atmega168PA)
  .jpg)
| Based on and built in conjunction with the original QUADBoard designer Rolf and the popular and already well supported KK Control board, the Hobbyking Multi-Rotor control board is bringing Quadcopter madness to the masses with its breakthroughs in quality and price!
The HobbyKing Multi-Rotor control board uses Japanese Murata piezo gyros that are less sensitive to vibration than SMD type gyros and also features state of the art SMT manufacturing to ensure quality. This board also uses a user programmable Atmega168PA IC.
IN STOCK $12.99
ADD TO CART
BA Nano Gyro 2.3gram
Dimension: 23mmX16mmX5mm (0.9inX0.63inX0.20in)
Weight: 2.3gi0.08ozjwith all the signal wires and JST connector
2.8gi0.10ozjwith all the signal wires and JR connector
Power Supply: 4.5V ~ 6.0V
Current Draw: 10mA (4.5V)
Indicator: Green/Red to show that status of gyro setting
Function: Bicolor LED, setup adjustment and single rate gain adjustment.
Sensor: piezo sensor
Max Angular Rateideg/secjF+/- 300
Response Rate: 50Hz
Linearity %FSF+/--5 %
Operating Temperature:-5? ~ 75?
IN STOCK $26.00
ADD TO CART

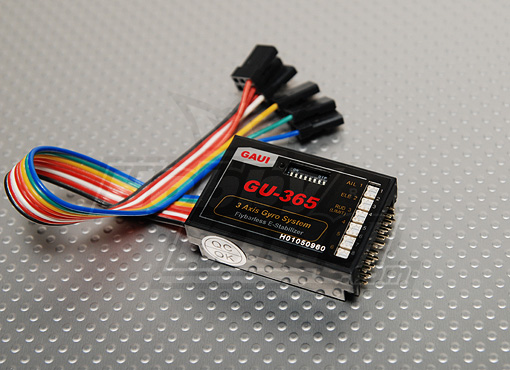

Gaui Flybarless E-Stabilizer FES (GUEC GU-365)
Gaui Flybarless E-Stabilizer FES (GUEC GU-365)
Suitable for all size EP helicopters.(Not applicable for Nitro power helicopters)
IN STOCK $117.99
ADD TO CART
Flymentor 3D is a stabilization unit that helps the helicopter to self-stabilize in hover and also self recovery during 3D manuever.
This unit comes with 5 items; the main unit, gyro, CCD sensor, CD software and usb data cable (manual is in PDF format in the CD).
IN STOCK $69.99
ADD TO CART
Robird G31 3-Axis Precision Flybarless System
Taking 3 years of continuous development and testing, the Robird G31 flybarless system is now available and has been released to the market for 2012. Incorporating a high precision digital 3-axis MEMs gyro along with their own control algorithm, the G31 is a state-of-the-art controller for FBL helis ranging in size from 250 to 700. Programming the G31 can be done using transmitter stick inputs or via USB with Robird's free programming software.
The G31 supports Spektrum/JR DSM2/DSMX/DSMJ satellites and Futaba S.BUS allowing it to be used as a receiver/FBL controller combination. This means that you can eliminate the need for using a separate receiver by simply connecting a satellite directly to the G31!
You simply will not find a better deal for a precision flybarless system on the market today. The G31 offers the same features and performance normally only found on $200+ big name units, and all of this at a fraction of the price!
IN STOCK $87.99
ADD TO CART
GWS PG-02 Piezo Gyro/JR
Specification:
Dimension: 28.5 x 26.5 x 11mm
Weight: 11g(Gyro only) 13g (with gyro mount)
Power supply: 4.8~6V
Current drain: 30mA (At 4.8V)
Gain adjustment: Dual-Gain (Remote control)
Operating temperature: -5~+50C
Applicable R/C systems: Futaba, JR, Hi-Tec, Sanwa/Airtronics Multiplex, GWS
IN STOCK $24.51
ADD TO CART
Futaba GY611 w/ BLS251 Digital Brushless Heli Rudder Servo 3.8kg/.06sec/61g
This is the Futaba GY611 Gyro with the BLS251 Brushless Digital Servo.
Super narrow pulse drive system substantially improves servo response.
Microcomputer high-speed arithmetic processing substantially improves gyro response.
High-resolution 12-bit A/D (Analog to Digital) accurately converts sensor output to a digital signal.
SMM (Silicone Micro Machining) micro-machining mechanical parts and systems right on a silicone chip and also low-back aeroform case improves vibration resistance and neutral characteristic .
AVCS (Angular Vector Control System) (same as heading hold) system requires a high-precision angular velocity detection function and extremely small output drift by using a new type of gyro sensor.
This minimizes rudder neutral position drift during flight and eliminates the need to trim the rudder during flight.
IN STOCK $289.79
ADD TO CART
|
ZYX-S 3-Axis Flybarless System w/USB Program Adapter
.jpg)
| The ZYX-S high performance multi-function 3-axis gyro system is the lightest flybarless system in the world. It is compatible with all 200-700 nitro or electric power helicopters and support 90, 120, 135, and 140 degree CCPM swashplate systems. Furthermore, it is compatible with all types of servos; supports both digital and analog 1520us, 960us and 760us servos. The setup process is quite easy, takes only about ten minutes. This unit also supports firmware updates.
The new ZYX-S version now supports S.BUS and DSM2/DSMJ satellite receiver functionality! This means not only can you use this with your S.BUS radio system, but you can also eliminate the need for using a separate receiver by simply connecting a DSM2/DSMJ satellite directly to the ZYX-S!
IN STOCK $55.99
ADD TO CART |

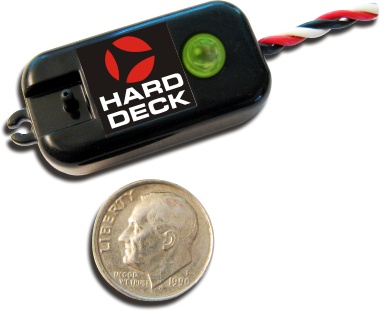

Hard Deck Module PN: HD100-US
|
Hard Deck Module Barometric Altimeter for Co-Pilot II Systems with programmable altitude range (50 to 255 feet). Provide semi-autonomous recovery of model airplanes and helis by enabling Co-Pilot II Emergency Recovery at a programmed altitude. Please be advised, the Hard Deck Module will only operate with R/C helicopters that are either non-CCPM or 3x120 CCPM . Other variants such as 3x90 CCPM, 3x135 or 3x140 CCPM are not supported unless utilizing a flybarless controller where the mixing occurs after the CPII Computer Module on board the helicopter.
|
| |
Co-Pilot II System Combo 6 PN: CPII-C6-US
|
Combo Contents: 1 CPII Computer Module, 1 Main Sensor, 1 Vertical Sensor, 1 IRNet Programmer, 1 IRNet Router, 1 FUIM3 PC USB Interface, 1 Hard Deck Module, 1 Mounting Accessory Kit (not pictured). Please be advised, the Hard Deck Module will only operate with R/C helicopters that are either non-CCPM or 3x120 CCPM . Other variants such as 3x90 CCPM, 3x135 or 3x140 CCPM are not supported unless utilizing a flybarless controller where the mixing occurs after the CPII Computer Module on board the helicopter.
|
| |
Co-Pilot II System Combo 1 PN: CPII-C1-US
|
CPII-C1 is the basic system. All features are similar to the other combo's, but without the vertical sensor, automatic temperature calibration is not available. Calibration is simple to do and without the vertical sensor installed, the menu system will automatically include another option for calibration. Calibration should be performed 1 time per flying day, or whenever the weather conditions change drastically. Also, without the vertical sensor installed, the aircraft is likely to recover from inverted flight using a split-S maneuver (half of an outside loop) which, if the aircraft is not at high enough altitude can result in contact with the ground. The vertical sensor, when installed, always forces Co Pilot II to roll the aircraft from inverted flight with little loss of altitude. Finally, without the vertical sensor, certain 3D flight modes such as knife edge and vertical hover are not possible. Combo 1 also does not include the PC interface which means you will not be able to access automatic firmware updates using a personal computer running Windows operating systems. Click here to view product specifications and download PC software (requires FUIM3 PC Interface).
Weight: .5 kg
|
| |
Co-Pilot II System Combo 2 PN: CPII-C2-US
|
CPII-C1 is the basic system. All features are similar to the other combo's, but without the vertical sensor, automatic temperature calibration is not available. Calibration is simple to do and without the vertical sensor installed, the menu system will automatically include another option for calibration. Calibration should be performed 1 time per flying day, or whenever the weather conditions change drastically. Also, without the vertical sensor installed, the aircraft is likely to recover from inverted flight using a split-S maneuver (half of an outside loop) which, if the aircraft is not at high enough altitude can result in contact with the ground. The vertical sensor, when installed, always forces Co Pilot II to roll the aircraft from inverted flight with little loss of altitude. Finally, without the vertical sensor, certain 3D flight modes such as knife edge and vertical hover are not possible. Combo 1 also does not include the PC interface which means you will not be able to access automatic firmware updates using a personal computer running Windows operating systems. Click here to view product specifications and download PC software (requires FUIM3 PC Interface).
Weight: .5 kg
|
| |
Co-Pilot II System Combo 3
|
CPII-C3 - Combo 3 includes all current system components available for Co Pilot II including the vertical sensor and the FUIM3 PC interface. view product specifications and download PC software.
Weight: .6 kg
|
| |
Co-Pilot II System Combo 4 PN: CPII-C4-US
|
Combo Contents: 1 CPII Computer Module, 1 Main Sensor, 1 Vertical Sensor, 1 IRNet Router, 1 Mounting Accessory Kit (not pictured). This package is designed for customers who have the IRNet Progammer. You must have a programmer in order to operate the CPII. specifications and download PC software (requires FUIM3 PC Interface).
Weight: .1 kg
|
| |
Co-Pilot II System Combo 5 PN: CPII-C5-US
|
Combo Contents: 1 CPII Computer Module, 1 Main Sensor, 1 Vertical Sensor, 1 Mounting Accessory Kit (not pictured). This package is designed for customers who want to install the CPII on multiple helicopters and do not wish to purchase multiple IR Routers (PN: IRN RT). to view product specifications and download PC software (requires FUIM3 PC Interface).
Weight: .1 kg
|
| |
Co-Pilot II Computer Module PN: CPII-CM-US
|
Replacement CPII Computer Module
Weight: .02 kg
|
| |
Co-Pilot II Main Sensor PN: CPII-MS-US
|
Replacement CPII Vertical Sensor Module
Weight: .006 kg
|
| |
Co-Pilot II Vertical Sensor PN: CPII-ZS-US
|
Replacement CPII Vertical Sensor Module
Weight: .006 kg
|
| |
IRNet Programmer PN: IRNHP-US
|
This wireless, 4 button programmer includes a 2 line, 16 character LCD. It is used with IRNet peripheral devices to perform setup tasks and monitor real-time information provided by IRNet peripherals such as the Co-Pilot II computer. Scan for IRNet devices on the network, access setup menus, answer simple setup questions to program IRNet peripheral devices. Use the IRNet to get important information back from your airborne IRNet peripherals.
Weight: .2 kg
|
| |
IRNet Router PN: IRNRTR-US
|
CPII and future IRNet peripherals may require this wireless, IRNet Receiver and Network Port. Connect the IRNet peripheral to this device for communication with the IRNet programmer. Used in combination with the IRNet programmer, the wireless link can provide a range of 30-50 feet outdoors and 200 feet indoors.
Weight: .09 kg
|
| |
IRNet Programmer and Router Combo PN: IRN-C1-US
|
Combo Contents: 1 IRNet Programmer, 1 IRNet Router - Available to update any CPII LT combo to a full-blown CPII system so you can program in the field
Weight: .2 kg
|
| |
Co-Pilot II LT System Combo 2 PN: CPII-L-C2-US
|
The new, lower cost CPII LT systems are fully-operational flight stabilization systems. They have all of the features available in the original CPII systems except that they do not include the IRNet Programmer or IRNet Router. Programming is done via the FREE "Co-Pilot II Display Software". Pre-flight weather check, as well as system error messages are provided by means of the new CPII Go LED. This information is available at the blink of an eye and provided in real-time via the Go LED's 3 super-bright LED's. CPII LT Combo 2 includes the vertical sensor which will allow automatic and continuous, in-flight weather calibration, the added intelligence of having the aircraft always recover from inverted flight to level flight by rolling the aircraft, and access to all 3D flight modes. CPII LT Combo 2 does include the FUIM3 PC USB interface which means you will be able to access automatic firmware updates using a personal computer running Windows operating systems, and you will be able to program and access all features of the CPII using your Windows based PC. to view CPII product specifications, download manuals, the "Co-Pilot II Firmware Update Utility" and the "Co Pilot II Display Software" (requires FUIM3 PC Interface).
Weight: .2 kg
|
| |
FUIM3 USB Interface Module for 2-way data communication PN: FUIM3-US
|
This high speed, opto-isolated, PC USB interface module is designed to provide safe, 2-way communication between Revolectrix products and a PC USB port. For use with free PC software, supports firmware updates, and PC compatible GUI software for Revolectrix Chargers and Battery Management Systems, Co-Pilot II Flight Stabilization systems and other products. Drivers for this device are available from within the available PC software programs for Revolectrix products by clicking the link "download usb driver". For more details, see the software installation page for the particular Revolectrix product in question.
Weight: .05 kg
|
| |
Co-Pilot II Mounting Accessory Pack PN: CPII-ACCY-US
|
Co-Pilot II Mounting Accessory Pack
Weight: .009 kg
|
| |
|
